Mastering the Canvas Block

The Square Orb Canvas (square-orb/gallery) is the core Gutenberg block for embedding fast, interactive media galleries into posts, pages, and custom post types.

---

Adding the Block

1. Open any post or page in the WordPress block editor.
2. Click the + (Add block) button and search for Square Orb Canvas.

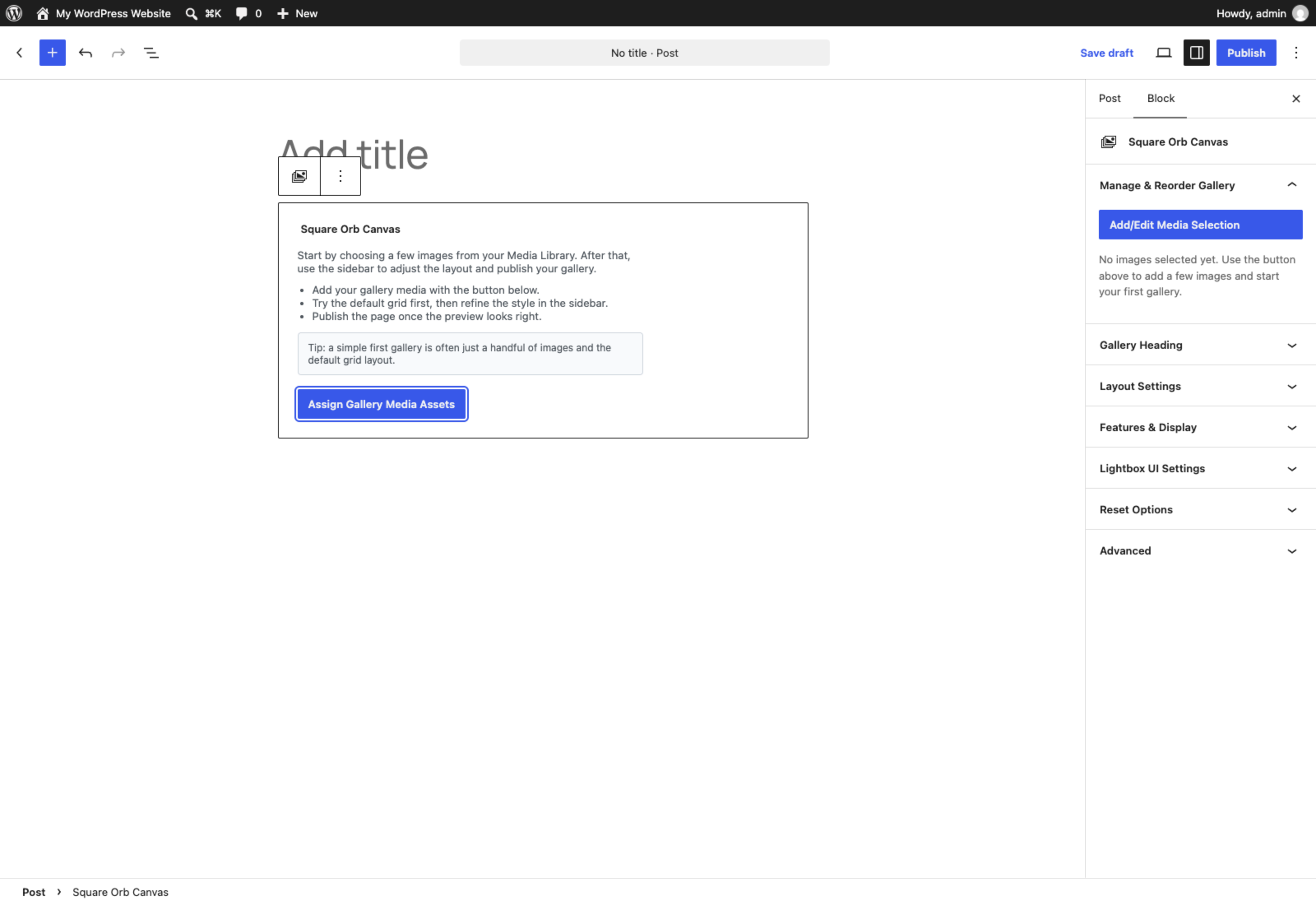

3. If no images have been assigned yet, the block displays a setup placeholder with quick-start tips and an Assign Gallery Media Assets button.

---

Block Settings Sidebar

When the Square Orb Canvas block is selected, the settings sidebar provides six distinct panels:

1. Manage & Reorder Gallery

• Add/Edit Media Selection: Launches the WordPress Media Library modal to select, add, or remove images.
• Drag-and-Drop Reordering: Drag items using the ☰ handle to reorder images visually.
• Video URL Integration: Each image entry has a dedicated “Video URL” field supporting YouTube (watch and youtu.be links), Vimeo, and direct MP4 URLs. When clicked in the gallery, the lightbox plays the embedded video rather than displaying the static image.
• Remove Asset: Click X to remove an image from the gallery without deleting it from your media library.

2. Gallery Heading

• Show Gallery Heading: Toggle whether to display an HTML heading above the gallery.
• Heading Text: Enter custom title text. Note: Heading text is content-level and remains unique per block even when the Master Override Switch is active.
• Heading Tag: Choose the semantic tag (h2, h3, h4, h5, h6, or p).
• Heading Styling Source:
  • Inherit Theme Styles: Inherits your active theme’s typography rules.
  • Use Square Orb Preset: Applies clean, modern, responsive typography.
• Show Divider Under Heading: Adds a subtle horizontal rule below the title.

3. Layout Settings

• Gallery Style: Switch between Perfect Square Grid, Dynamic Masonry, Cinematic Justified Row, Responsive Swipe Carousel, or Interactive Traveler’s Map.
• Desktop Columns: Auto-fill or fixed 3, 4, 5, or 6 columns.
• Mobile Columns: 1 to 4 columns.
• Grid Gap: Spacing in pixels between gallery items (0–50px).
• Corner Radius: Rounded corner styling for image thumbnails (0–100px).

4. Features & Display

• Scroll Animations: Animate gallery items as they enter the viewport.
• Category Filters: Generates filter buttons for WordPress categories assigned to your attachments.
• Smart Search (AI): Adds a live, real-time search input above the gallery.
• AJAX Media Per Page: Initial count of media items rendered on page load (4–100).
• Button Customization: Customize the “Load More” pagination button label, shape (Pill, Rounded, Square, or Theme Default), background color, and text color.

5. Lightbox UI Settings

• Transition Engine Style: Select from 11 animation styles (None, Fade, Blur, Wipe, Curtain, Swipe, Slide, Zoom, Bounce, Flip, Spin).
• Slideshow Controls: Toggle auto-advance and set the transition duration in seconds.
• Gallery Filmstrip: Enable or disable the thumbnail carousel at the bottom of the lightbox.
• Control Buttons Styling: Customize the background, color, and border radius of the viewer controls.
• Media Border & Radius: Adjust frame border width, color, and corner radius.
• Meta & Sharing Toggles: Control visibility of image title, caption, technical EXIF badge row, and social share buttons.
• Overlay Matte Color: Customize the background overlay color with support for RGBA transparency.

6. Reset Options

• Clear Canvas Overrides: Settings customized locally in the block display an (Local Override) badge. Click Clear Canvas Overrides to wipe all local block customizations and instantly revert to your site-wide Global Presentation Defaults.

---

Setting Applicability Matrix

To keep the editor intuitive, the block sidebar dynamically shows only the settings applicable to your chosen layout:

Setting	Grid	Masonry	Justified	Carousel	Map
Desktop Columns	✅	❌	❌	❌	❌
Mobile Columns	✅	❌	❌	❌	❌
Grid Gap (Spacing)	✅	✅	✅	✅	❌
Corner Radius	✅	✅	✅	✅	❌
Scroll Animations	✅	✅	✅	❌	❌
Category Filters	✅	✅	✅	✅	❌
Smart Search (AI)	✅	✅	✅	✅	❌
AJAX Media Per Page	✅	✅	✅	✅	❌
Load More Button Styling	✅	✅	✅	✅	❌
Lightbox Transitions & Controls	✅	✅	✅	✅	✅
Asset Protection	✅	✅	✅	✅	✅
